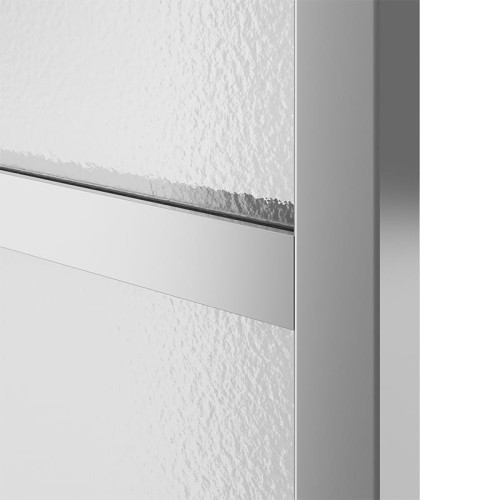

Muntin profile Z-1S

Art. No. 020 014 05

The Z1-S muntin fits this fronts (No. 020 025 05)

 Download

Art. No. 020 016 05

The Z1-S muntin fits this fronts (No. 020 025 05)

 Download

Art. No. 020 021 05

The Z1-S muntin fits this fronts (No. 020 025 05)

 Download

Art. No. 020 027 05
For frames with integrated BLUM hinge, a hinge spacer should be used, catalog no 70T3507.21.

The Z1-S muntin fits this fronts (No. 020 025 05)

 Download

Art. no. 020 038 05

Door panel engineered for Salice Air concealed hinge hardware; compatible with standard Blum and Hettich hinges as well
Max. door panel dimensions (Salice Air concealed hinges): 600 x 2700 mm (23-5/8" x 106-5/16")
Max. door panel weight (Salice Air concealed hinges): 20 kg (44 lbs)
For cabinet carcass thickness under 25 mm (1"), Salice Air concealed hinges require a ZOBAL adapter (Art. No. 010 007 05)
The Z-23 door panel prepped for Salice Air concealed hinges requires no additional mullions or stiffeners


The Z1-S muntin fits this fronts (No. 020 025 05)

 Download

Art. no. 020 045 05

• The profile is similar in shape to the Z-23 profile
• The profile is suitable for constructing frames using AirSalice hinge connectors (020 040 00 + 020 041 00) and connectors for narrow frames: 7004.
• Depending on the connectors used, you can use AirSalice concealed hinges or hinges for narrow frames from BLUM, Hettich, or other manufacturers designed for narrow aluminum frames.
• The thickened walls make the profile particularly suitable for designing frames with larger dimensions: 2700x700 and even 3200x600
• The thick walls allow for threaded holes to be drilled directly into the profile wall—recommended thread sizes are M4 and M5.
• Recommended handles: U9, U92, U922, and U1, U2, U3, U4, U5, U6, U8.
• The glass cutout is 45 mm in height and width.

For cabinet carcass thickness under 25 mm (1"), Salice Air hinges require a ZOBAL adapter (Art. No. 010 007 05)

 Download
