UKW-12 I / U-12 I
product unavailable
add to wish list
Vendor:
Zobal
Vendors's code:
029 012 05I | 011 057 05I
Description

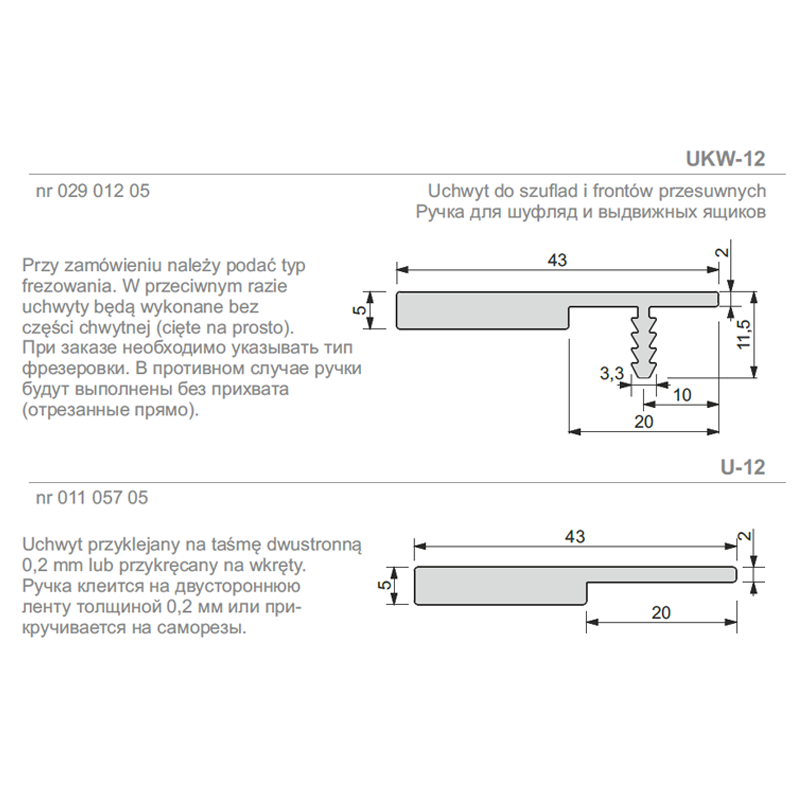

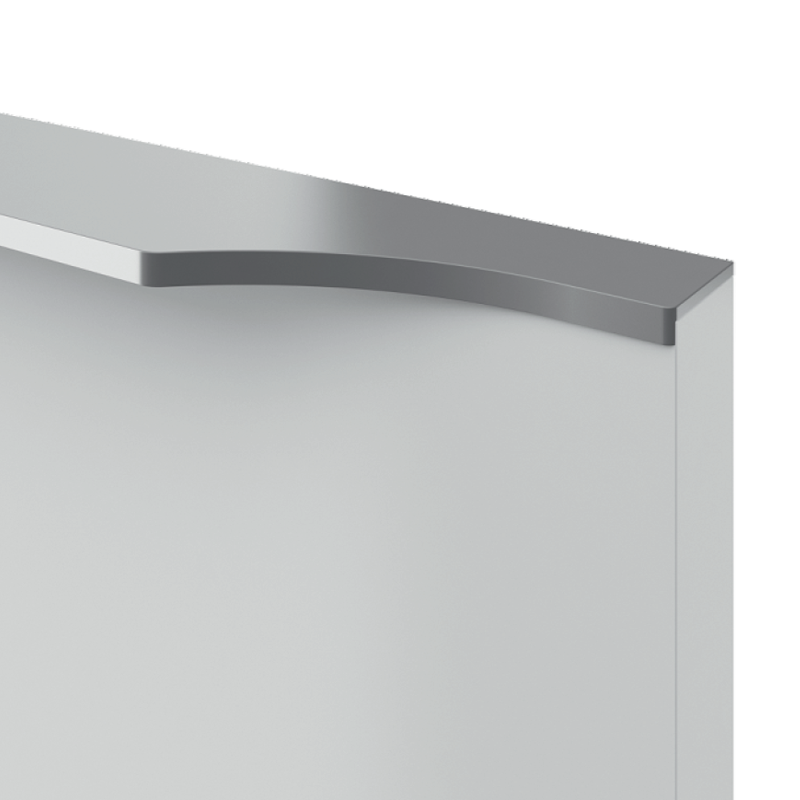

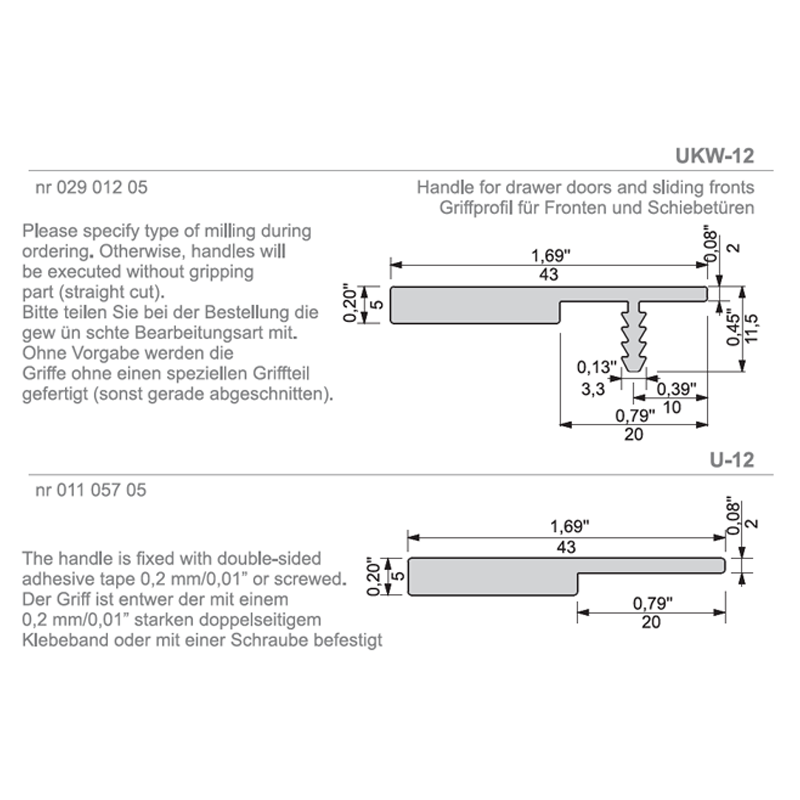

Handle for drawer doors and sliding fronts
nr 029 012 05

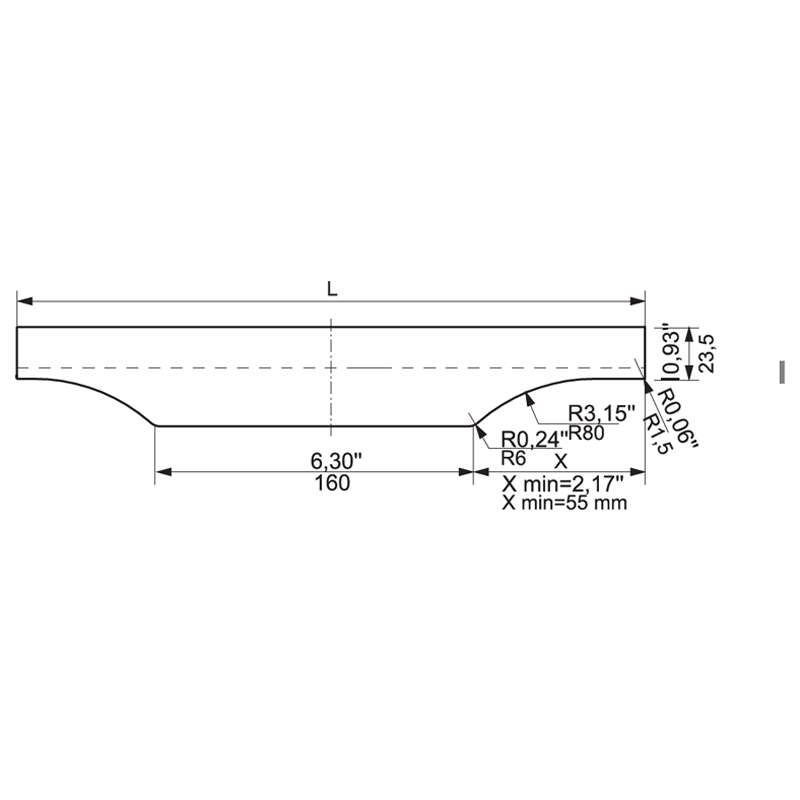

When ordering, one should specify the type of milling. Otherwise, the handles will be made without milling the gripping part (only cut straight).
The suggested thickness of the front board for UKW-12 handle in the milling types: D, I and N is 0,74" / 19 mm.
nr 011 057 05
The handle is fixed with double-sided adhesive tape 0,01" / 0,2 mm or screwed.
Download
