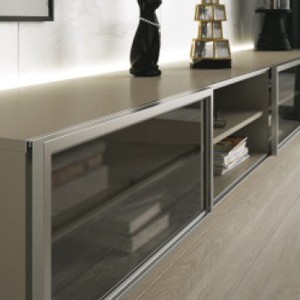

External system
Fronts Z-2, Z-6, Z-15, Z-20 i Z-21 are not used with inside, screw-in system
Download

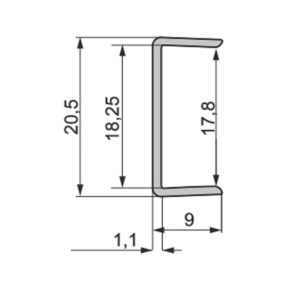

Edge profile PLN-18
nr 030 006 05 / for boards 18 mm / 0,71" thick length 3,5 m / 137,80"
Double-sided profile
nr 037 008 05
Display shelf glass V
nr 032 058 05, h 300×216 mm / 11,81″x 8,50 ”
Display shelf glass H
nr 032 059 05, h 216×300 mm / 8,50″x 11,81 ”
Display shelf
Upper profile: nr 032 039 05, L = 230 mm / 9,06″
Oberes Profil: nr 032 040 05, L = 440 mm / 17,32″
Designing the cabinet
* ALU-roll for 0,70'' / 18 mm board. Different board thickness after consultation with ZOBAL technical department.
** Slat pattern (review photo)
Construction element wall to wall
external nr 038 014 05*
internal nr 038 015 05
maximum dimensions:
height: 78,74" / 2000 mm
depth of: 13,78" / 350 mm
min. depth of: 7,48" / 190 mm
Construction element floor to wall
external nr 038 004 05*
internal nr 038 002 05
maximum dimensions:
height: 137,80" / 3500 mm
depth of: 13,78" / 350 mm
min. depth of: 7,48" / 190 mm
